24×40 Vertical Roof Metal Carport

Deposit to Order:
Price $4,995.00
Refundable small deposit to order

Customize Your Product

The leg height is the side wall height of the carport or metal garage. If you are looking for the center height clearance you can type in “center height clearance” in the ask a question on the bottom right of the page or you can always call or email with any questions.

14 Gauge is the standard tubing used on the framing of the metal buildings, it is 2 1/2″ square tubing.

The optional thicker 12 gauge tubing is 2 1/4″ square tubing.

Framing on the 12 gauge tubing come with a 20 year rust through warranty.

The metal carports & metal garages come standard with 29 GA galvanized steel sheet metal. 26 GA galvanized steel sheet metal, which is a thicker option, is available as an upgrade for an additional fee.

Select the type of level surface you will provide. The level surface must be provided by the customer and we will install and anchor to the selected surface. The site must be level or no more than 3 to 4 inches off level.

Alan’s Factory Outlet metal carports and metal garages come standard Certified for 150 mph and 35 psf. The certified carports and metal buildings comes with blue print drawings which are rated for 150 mph wind and 35 psf snow load. The carports and metal garages going on the ground or asphalt come uncertified and require additional anchors to make them certified so make sure if your carport or garage is going on the ground or asphalt and you want it to be certified to select the certified package for the ground or asphalt which will provide the additional anchors to make it certified for 150 mph and 30 psf. For example if you select ground certified and the carport or metal garage is going on the ground it will come with mobile home anchors to achieve the 150 mph wind rating. The drawings are usually emailed to you upon your request within approximately 2 to 3 business days after you review and approve and sign your order.

All 16 different colors are available for the same price and the color does not affect the delivery time. The roof sheeting is 29 gauge.

All 16 different colors are available for the same price and the color does not affect the delivery time. The trim color is the color on the ends.

$4,995.00 Price
Deposit to Order

FREE Delivery and Installation
Price details
$4,995.00 Item Base
Only pay a deposit
for delivery
Family-owned, custom-
made U.S. products
20-year warranty
on 12-gauge orders
Easy contact via
phone or website
Deposit to Order

Please enter you zip code to make sure we service your location.

Sorry, we don’t deliver to the selected zip code.

Only Pay a 10% - 17% Deposit

About Our 24x40 Carport

This affordable 24x40 metal carport is made in the USA with American steel, making it stronger than an aluminum carport. With 960 square feet of covered space, it makes a great 2-car carport, with extra space for equipment.

Customize the height, optional side panels, and colors above to see exactly how much this 24x40 carport costs with the options you need. We offer free delivery and installation instead of a kit.

Product Description Specifications

The 24 by 40 vertical roof carports from Alan’s Factory Outlet are dependable and highly customizable metal buildings. They are constructed using 14-gauge 2 1/2″ by 2 1/2″ square tubing, but customers can opt for 12-gauge 2 1/4″ by 2 1/4″ tubing instead, which comes with a 20-year rust-through warranty. This, combined with our anchoring process that uses rebar, mobile home anchors, or concrete anchor bolts to secure your carport in place, certifies the structure for 150 mph winds as well as 35 psf of snow.

Each 24×40 vertical-roof carport is also designed with 6′ legs as the standard. These legs, however, can be increased to 16′ in 1′ increments to allow for greater clearance when needed. Customers may also choose to partially or fully enclose the sides, gables, and ends, which are open on the standard model.

When customizing your 24 x 40 metal carport, you’ll also be given the opportunity to select the color of the roof and trim from 16 different options. If you choose to enclose the sides of your carport, you can select a color for those as well. The metal colors are approximate and may vary.

24x40 metal carport colors

All orders for 24 x 40 vertical-roof metal carports include free delivery and installation in the following states:

  • Alabama
  • Arkansas
  • Georgia
  • Indiana
  • Kentucky
  • Kansas
  • Louisiana
  • Maryland
  • Missouri
  • Mississippi
  • North Carolina
  • Ohio
  • Oklahoma
  • Pennsylvania
  • South Carolina
  • Tennessee
  • Texas
  • Virginia
  • West Virginia

*Delivery may not be possible in all regions.

A 10% to 17% deposit will be due when your order is placed. This can be paid with either a credit card or check. The remaining balance for your carport will be due upon its delivery and installation. A copy of the order will also be emailed to you for your review and records.

*The metal carport prices are subject to change without notice.

To help aid with any building permit requirements in your area, we also make blueprint drawings available via email upon request. These blueprint drawings generally take 3 to 4 business days to be delivered once your request has been submitted.

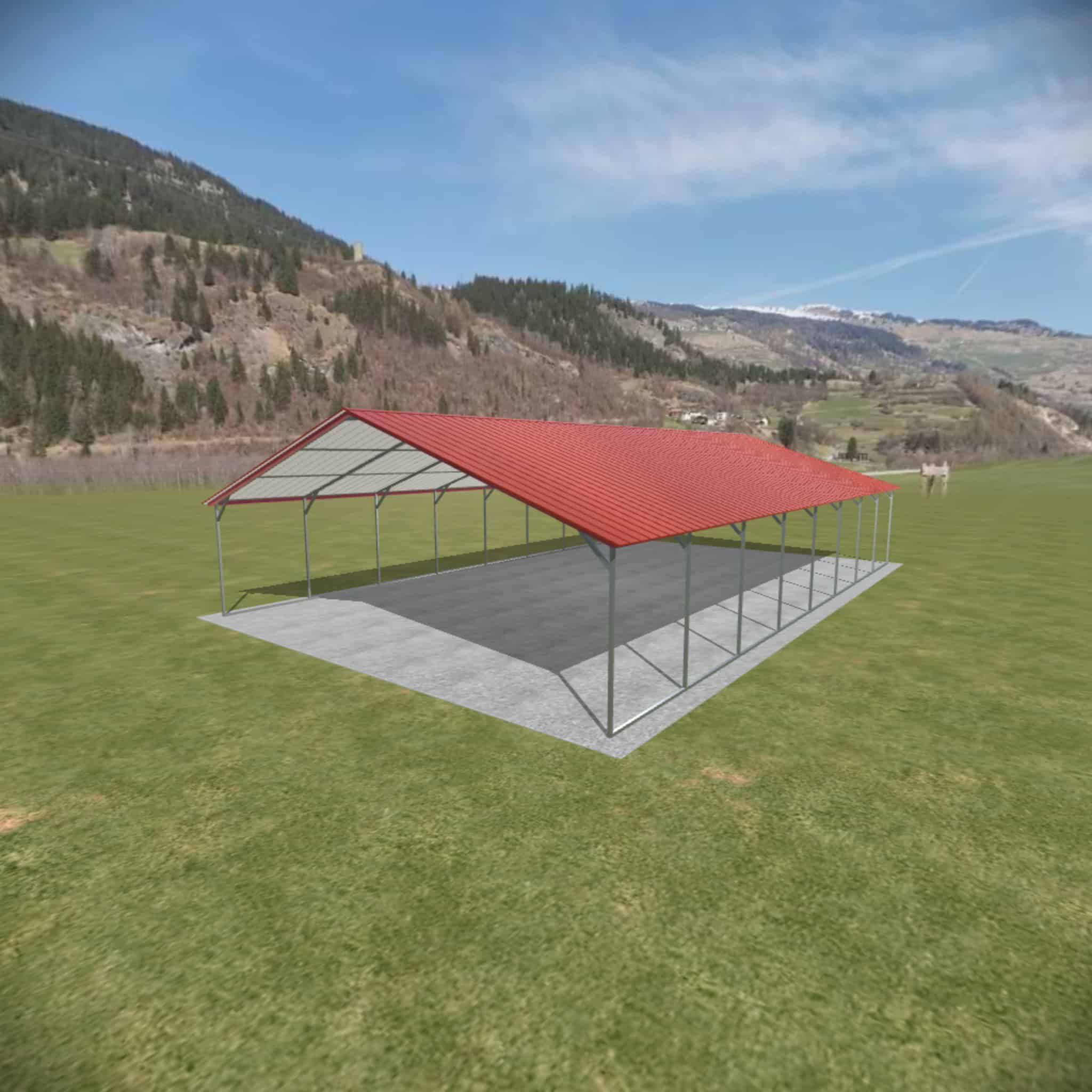

Below, you will find a picture of a carport using a vertical-style roof. This is to give you an idea of how the roof looks but not your particular carport. The carport featured in the image has an optional 3′ panel on each side as well as enclosed gables.

vertical metal roof

Place an order for your custom 24×40 vertical-roof carport online now, or feel free to give us a call at 1-800-488-6903 to speak with a service representative.

Cars 2 Cars
Roof Style Vertical
Width 24
Length 40
SQFT 960
Frame 14 Gauge
Doors 0
Windows 0
